Wash-Out booth - The Total Joy Washout Booth

  • $399.00
Shipping calculated at checkout.


Ink Innovations' Total Joy Washout Booth is the "economical solution" screen printers have needed! - If you have been putting off purchasing a professional washout booth due to the tremendous expense, then this is the perfect solution.

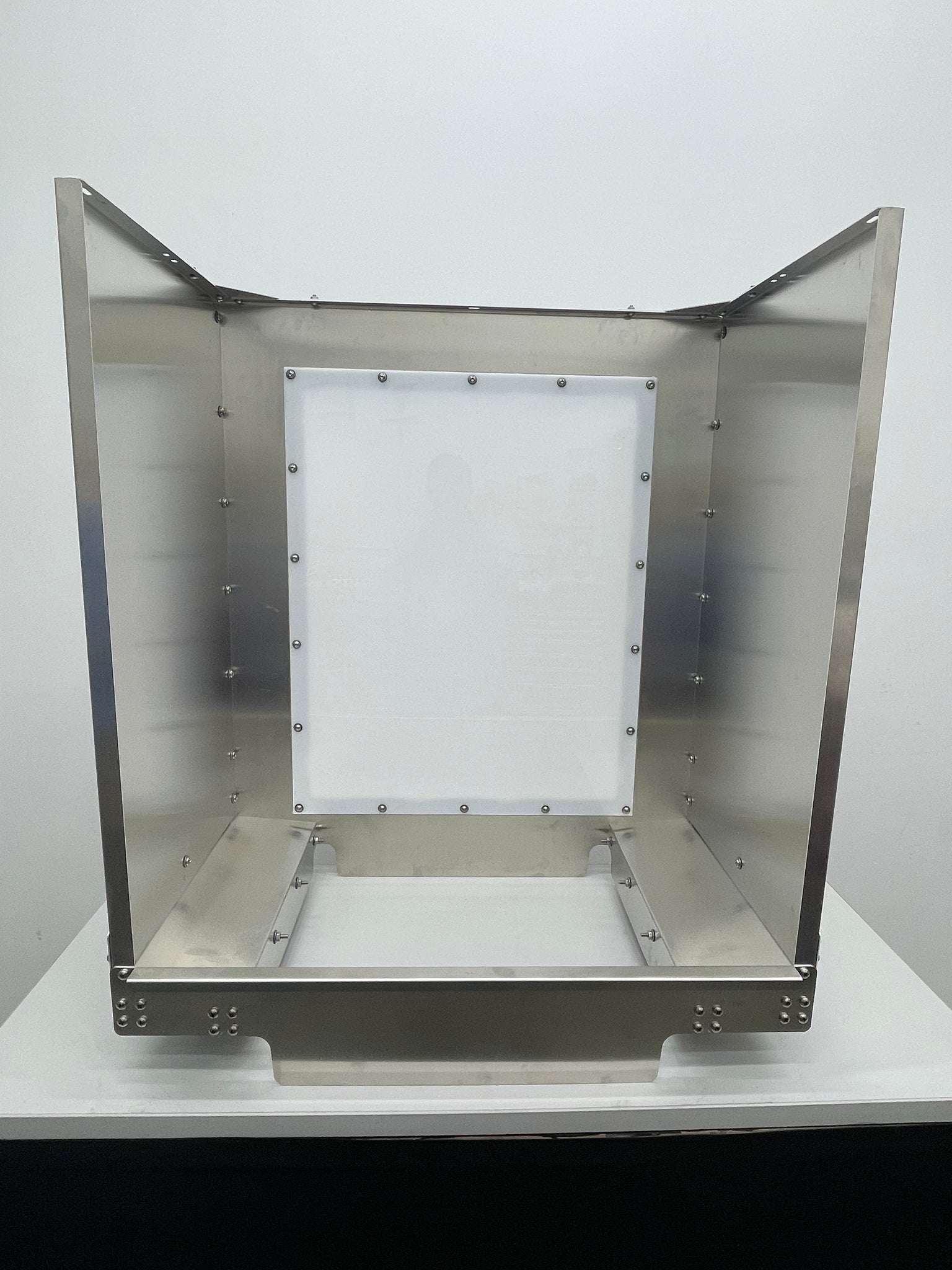

Our professional-grade washout booth is built to last a lifetime of abuse. The Total Joy Washout Booth is constructed from heavy-gauge aluminum and features 100% stainless steel hardware. We use rigid .062" thick aluminum (thicker than 16 gage steel ...about the thickness of a quarter). Additionally, because our panels are made from aluminum, they will not rust, and since they are not painted, they will never chip or peel.

Economical choice: If you have ever priced out a washout booth, you know that LTL truck freight and crating costs can range from $400 to over $800, and that is just for the crating and shipping.

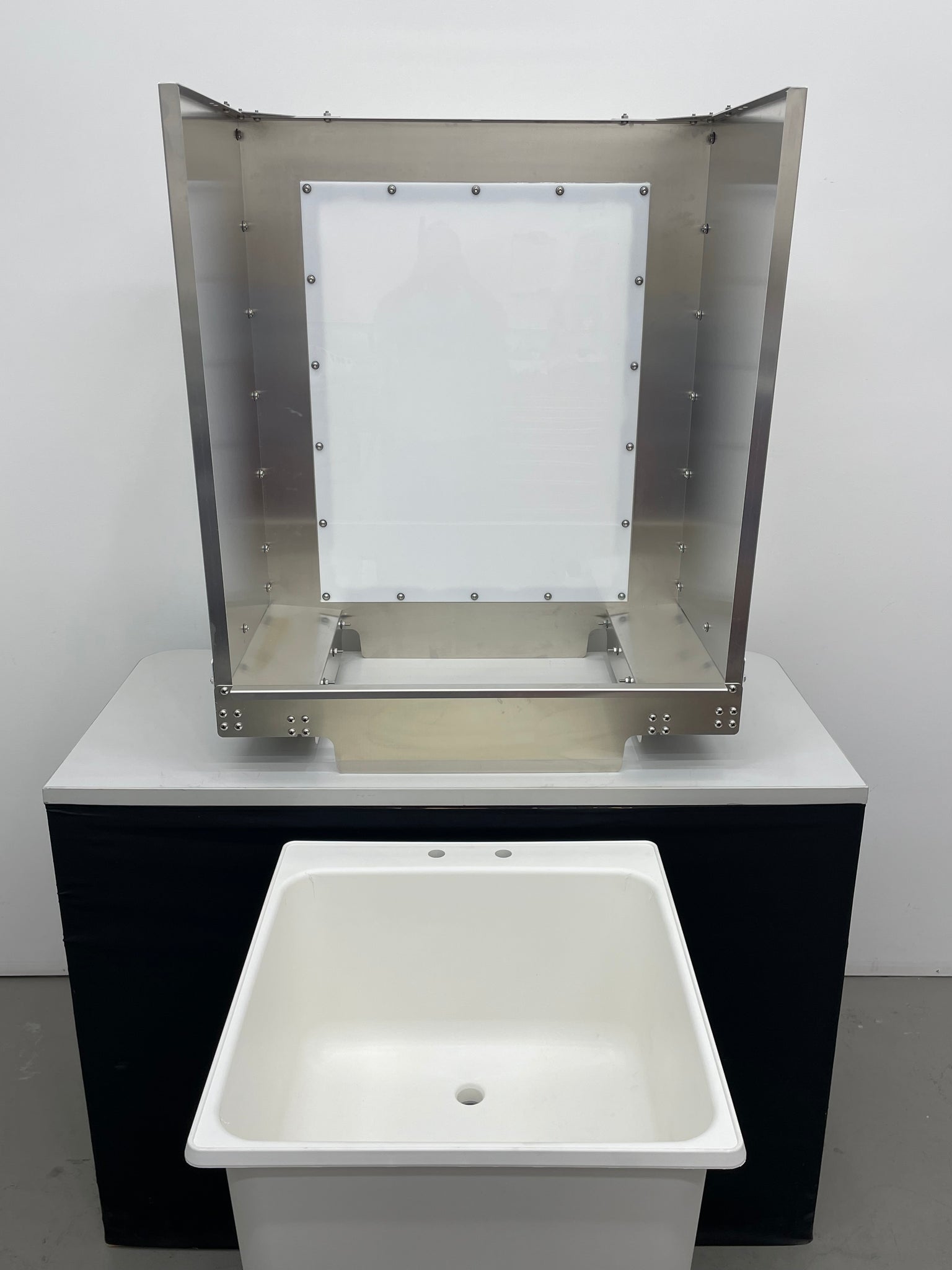

Our kit can ship UPS Ground without the need for expensive crating and LTL truck fees. This is possible because our innovative washout booths are compact kits. Once our kit is assembled, it attaches to a standard  MUSTEE brand "Utilatub" laundry tub, which you purchase separately at any home improvement store for around $65 (see links below).  This allows our kit to be very compact and light enough to avoid most oversized/overweight UPS Ground shipping charges.

Don't let the low price or the use of a Utilatub fool you...this is a serious, professional-grade washout booth that will perform as well or better than any washout booth on the market.

Assembly is very straightforward; all you need is a Phillips head screwdriver and a 7/16" wrench. Assembly takes about 30 minutes. (You will also need a caulk gun, but a tube of GE clear silicone is supplied with the kit.)


Features:

  • Accommodates 20" x 24" and 23" x 31" frames
  • Backlighting ready

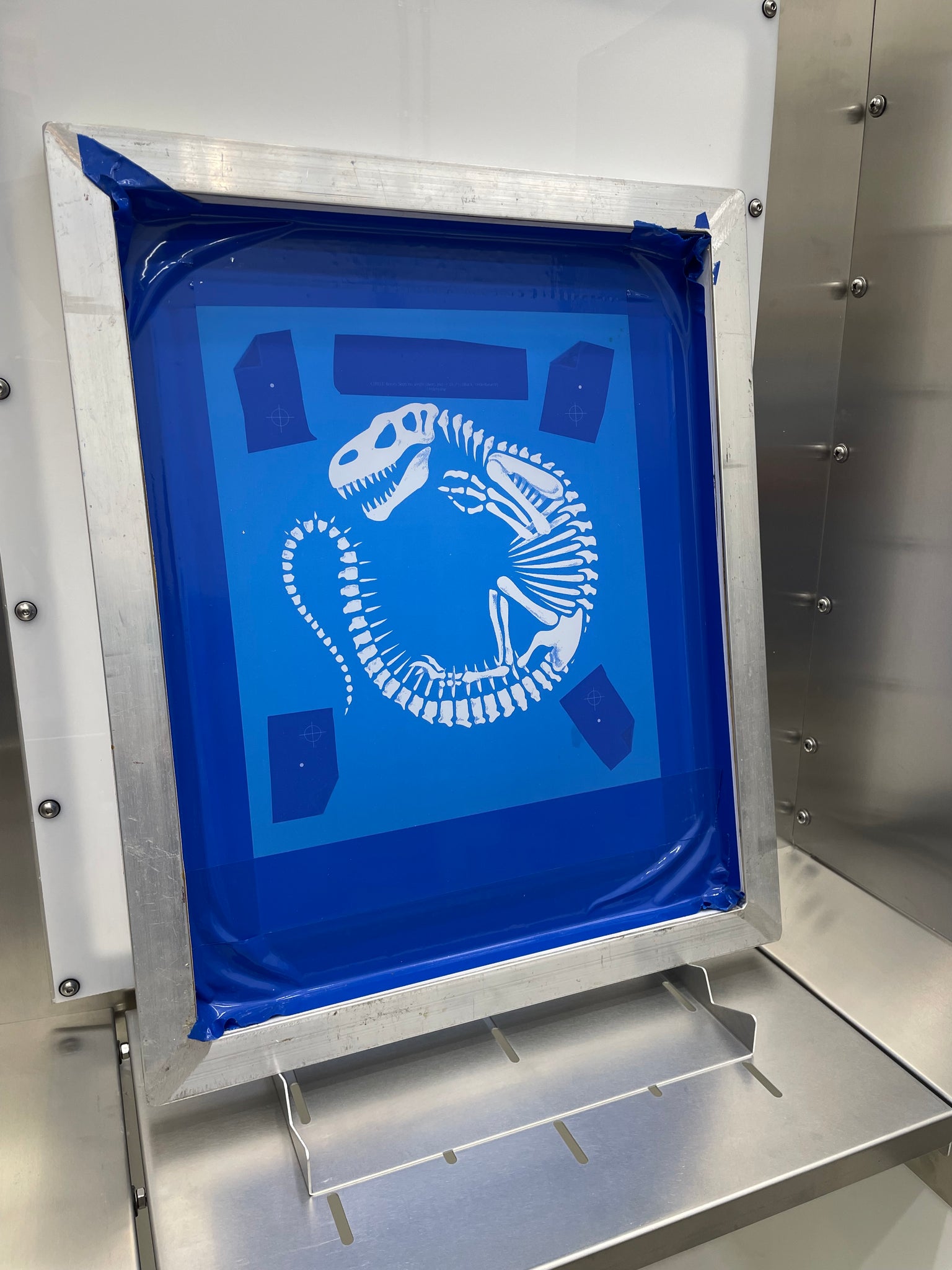

  • 3-position removable screen holder

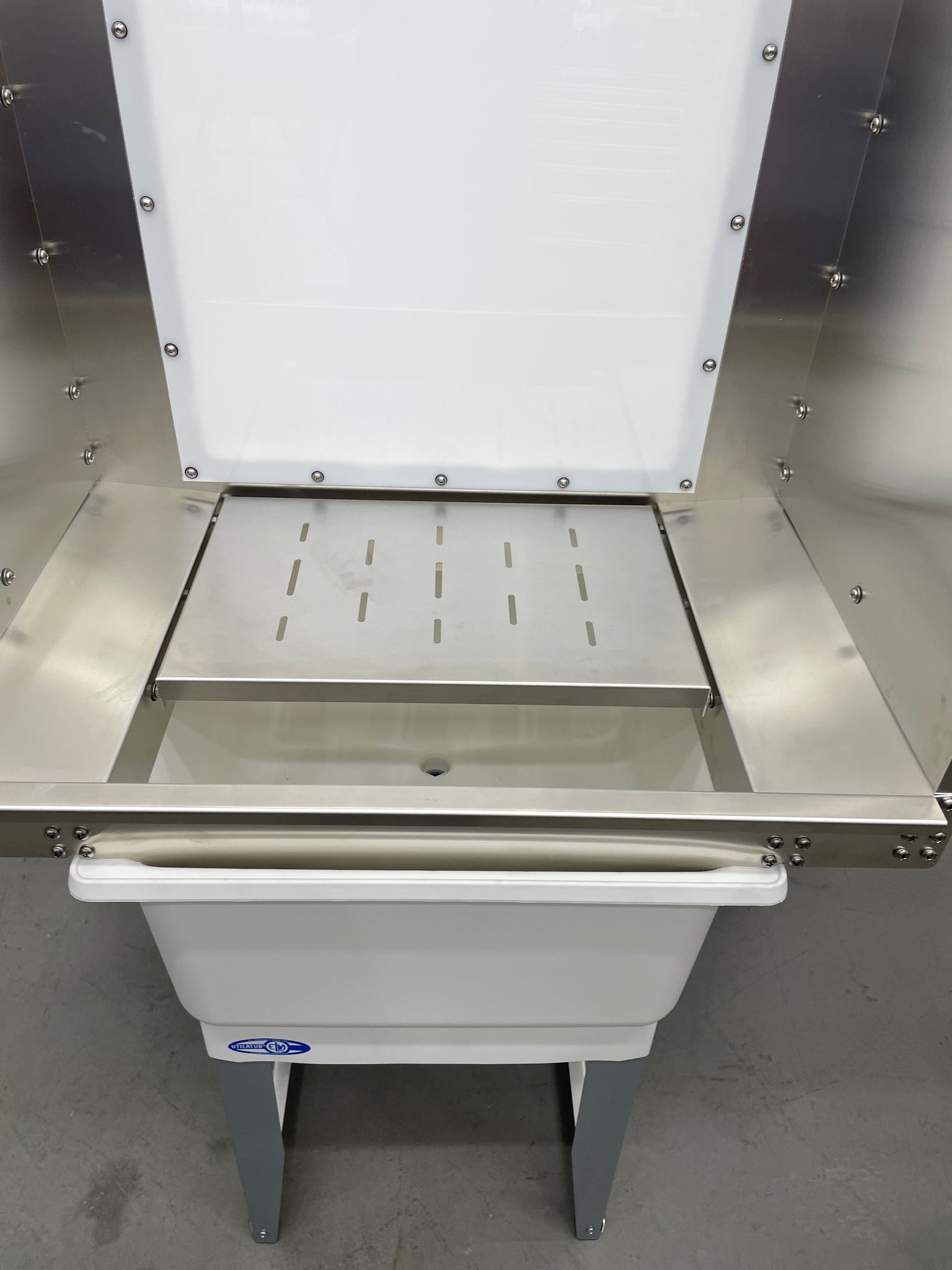

  • Removable table platform for easy cleaning and for tall objects.
  • Heavy-gauge aluminum panels
  • 100% stainless steel hardware.
  • Includes a tube of GE brand clear silicone.
  • Made in USA



In addition to our kit, you will need to purchase:

  • A Mustee brand Utilatub (style 14) Sink Basin. (see below)
  • Some form of lighting for the backlighting. (see below)


Sink Basin:

You will need to purchase a Utilatub #14 sink. You only need the sink. **DO NOT purchase the "Combo Kit," which includes a spigot. - Purchase only the sink with legs.** This sink can be purchased at any big-box home improvement store. They are usually in stock, but sometimes you may need to order one and have it delivered to the store (which is free). Note: Make sure you purchase Utilatube style 14, UPC code: 6 71031 00503 8

MUSTEE brand Utilatub at Home Depot for only $65 link:

MUSTEE Utilatub 20 Gallon 23 in. x 25 in. Freestanding Laundry/Utility Sink in white 14 - The Home Depot

Manufacturer link: Mustee Utilatub: Model #14

E. L. Mustee & Sons - 14


Backlighting:

Included with the kit are four modular brackets that will allow you to use a variety of light sources.

24", 20W LED lights work best; however, our modular brackets are very accommodating and will allow almost any lights as backlighting options. If you already have some fluorescent or LED lights, you should be able to get them to work!

We have tested and recommend the following LED lights, available on Amazon. The item contains two lights. They are inexpensive, work great, and are very simple to set up.  WARNING: You must have all electrical components plugged into a GFI outlet to avoid shocks or electrocution.

AMAZON link: CNSUNWAY LED Shop Light 2FT, 20W 3000LM 6500K, T8 LED Tube Lights, Clear Cover, Ceiling and Utility Shop Lights, Linkable Light Fixture for Room, Garage, Workbench, Warehouse, ETL Listed (2 Pack) - Amazon.com



Assembly Video:

This is a link to the assembly video:https://youtu.be/PRIoEkIEln4


We are working on Part 2 of the assembly video, which will demonstrate how to apply the silicone and provide various methods of setting up backlighting.
